Japanese MKI Gazelle Options Catalog
A catalog of options from Nissan Genuine Parts for the Japanese Market 1983-1986 MKI Nissan Gazelle. The catalog features a wide-range of available add-ons for the coupe and hatchback models to enhance the exterior and interior features of the vehicle. See the table at the bottom of the page for further information.

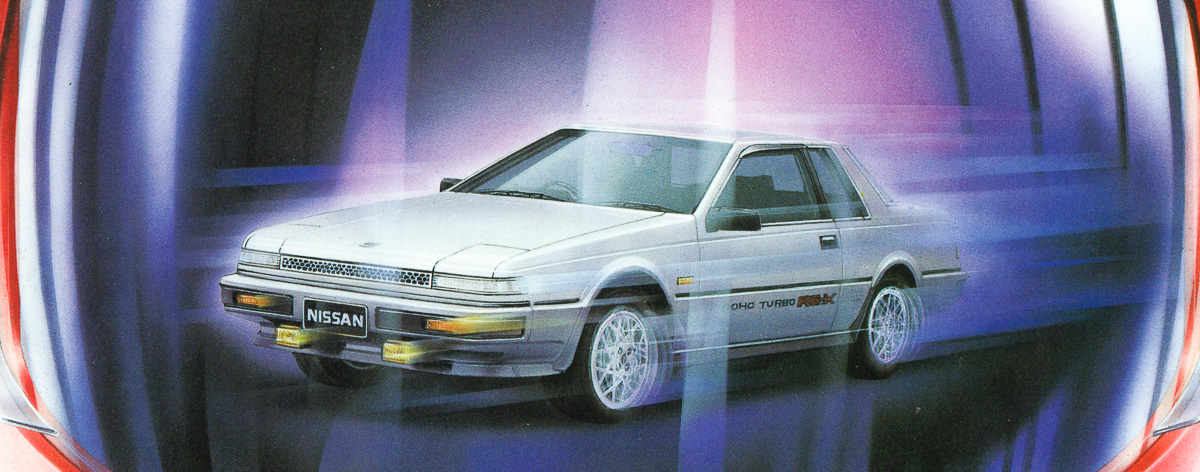

The DOHC sound rumbles as if crawling through the depths of the earth, and the turbocharger roars. The 190PS 4-valve DOHC turbo Gazelle RS-X is a fresh encounter, its sharp silhouette hints at an ultimate driving experience. The refined mechanism now comes with special options that allow it to truly shine. A new era of driving pleasure has arrived.Nissan Gazelle Japan MKI Options Catalog
Exterior
Daring and agile. Exterior options beautifully accentuate the futuristic form. Numerous functions further sharpen the outstanding dynamic performance and inspire your passion for endless cruising.Nissan Gazelle Japan MKI Options Catalog
1. Front Protector
2. Side Protector
3. Rear Spoiler

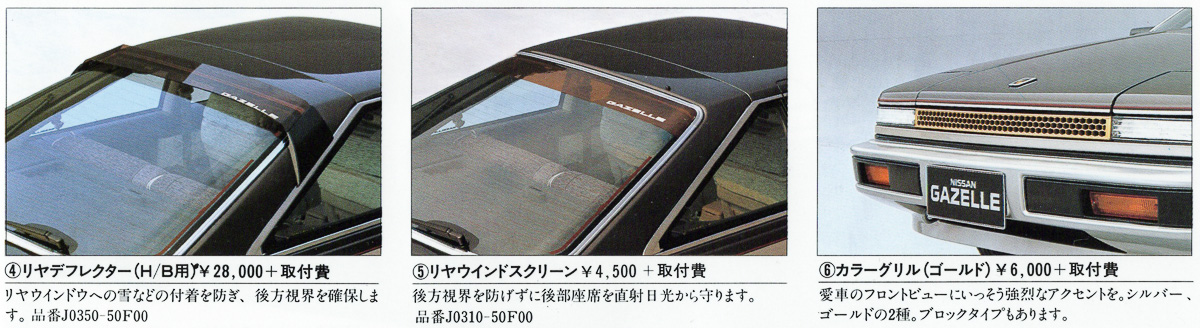

4. Rear Deflector for Hatchback
Prevents snow from sticking to the rear window and ensures rear visibility.
5. Rear Windscreen
Protects rear seats from direct sunlight without blocking rear visibility.
6. Color Grill (Gold)
Add a striking accent to the front view of your car. Available in two colors: Silver and Gold. Block type also available.
7. Aluminum Road Wheel (Gold Mesh)
An agile mesh type that brilliantly colors the racing spirit. The photo shows the 15-inch model. There is also a 14-inch model.
8. Aluminum Road Wheel (Silver Mesh)
An agile mesh type that brilliantly colors the racing spirit. The photo shows the 15-inch model. There is also a 14-inch model.
9. Aluminum Road Wheel (Special Type 14-inch)
High strength and excellent weight balance guarantee stable road holding. The innovative design dresses up the suspension and creates a striking driving impression.
10. Aluminum Road Wheel (Special Type 15-inch)
High strength and excellent weight balance guarantee stable road holding. The innovative design dresses up the suspension and creates a striking driving impression.
11. Road Wheel Cover
Easily dress up your wheels beautifully.

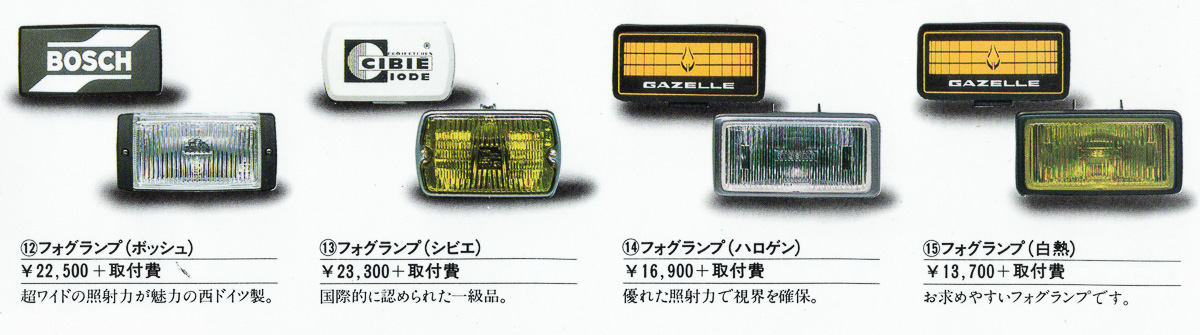

12. Fog Lamp (Bosch)
Made in West Germany, it boasts ultra-wide illumination.
13. Fog Lamp (Cibie)
Internationally recognised as a premium product.
14. Fog Lamp (Halogen)
Excellent illumination power ensures visibility.
15. Fog Lamp (Incandescent)
This is an affordable fog lamp.

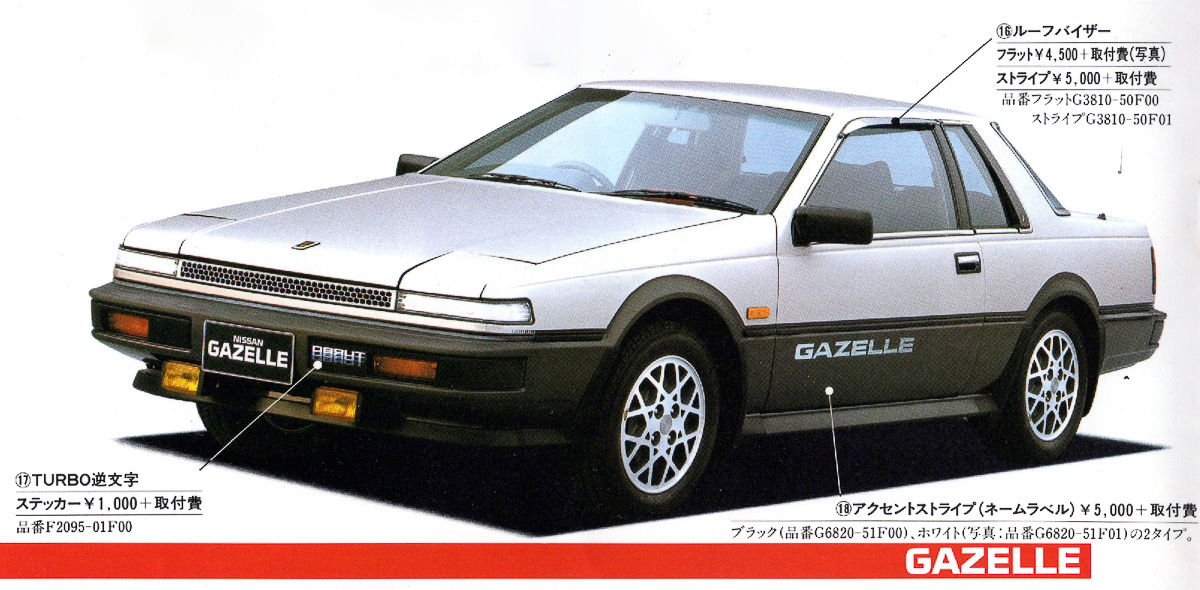

16. Window Visor
17. TURBO Reversed Letters Sticker
18. Accent Stripe (Name Label)
Available in Black and White
19. Accent Stripe (Pinstripe)
Available in Gold and Brown
20. Accent Stripe (Side Stripe Name Label)
Available in Black/Red and White/Red

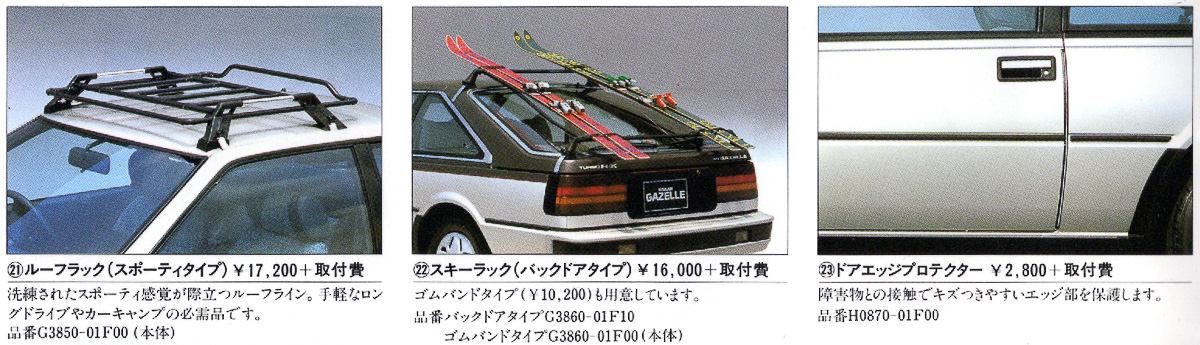

21. Roof Rack (Sports Type)
The roofline exudes a sophisticated yet sporty feel. It's a must-have for casual long drives and car camping.
22. Ski Rack (Rear Hatch Type)
A rubber band type is also available.
23. Door Edge Protector
Protects the edges which are easily scratched when coming into contact with obstacles.
24. Mudguard (Luxury Type)
Protects the vehicle from pebbles and mud kicked up by the tyres. This design is focused on a sense of unity with the body. A standard type is also available.
25. Pack In Cover
Fits your car in 15 seconds. The cover and storage bag are integrated for easy removal and installation. This is an ideal product with outstanding functionality.
26. Body Cover (Polyester)
Protects the body from rain, dust and direct sunlight. Available in two colours: Silver and Green. Also available in nylon.
Interior
27. Floor Mat (With Carpet: Red)
Keep your beloved floor beautiful forever. The footrest area is made of luxurious carpet.
28. Floor Mat (With Carpet: Gray)
29. Floor Mat (Black Rubber)

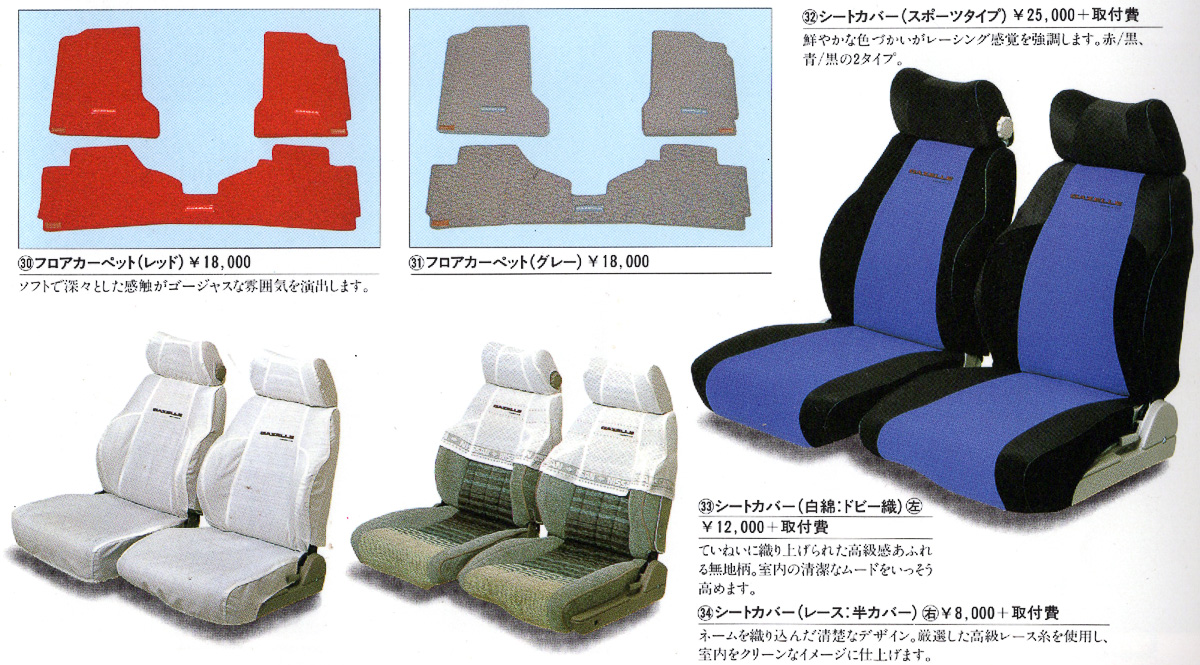

30. Floor Carpet (Red)
The soft and deep feel creates a luxurious atmosphere.
31. Floor Carpet (Gray)
32. Seat Cover (Sports Type)
The vivid colours emphasise the racing feel. Available in two types: Red/Black and Blue/Black.
33. Seat Cover (White Cotton: Dobby Weave)
The carefully woven plain pattern exudes a sense of luxury and enhances the clean atmosphere of the interior.
34. Seat Cover (Lace Half Cover)
A neat design with the name woven in. Made with carefully selected high-quality lace thread, it gives the interior a clean look.
Audio & Aircon

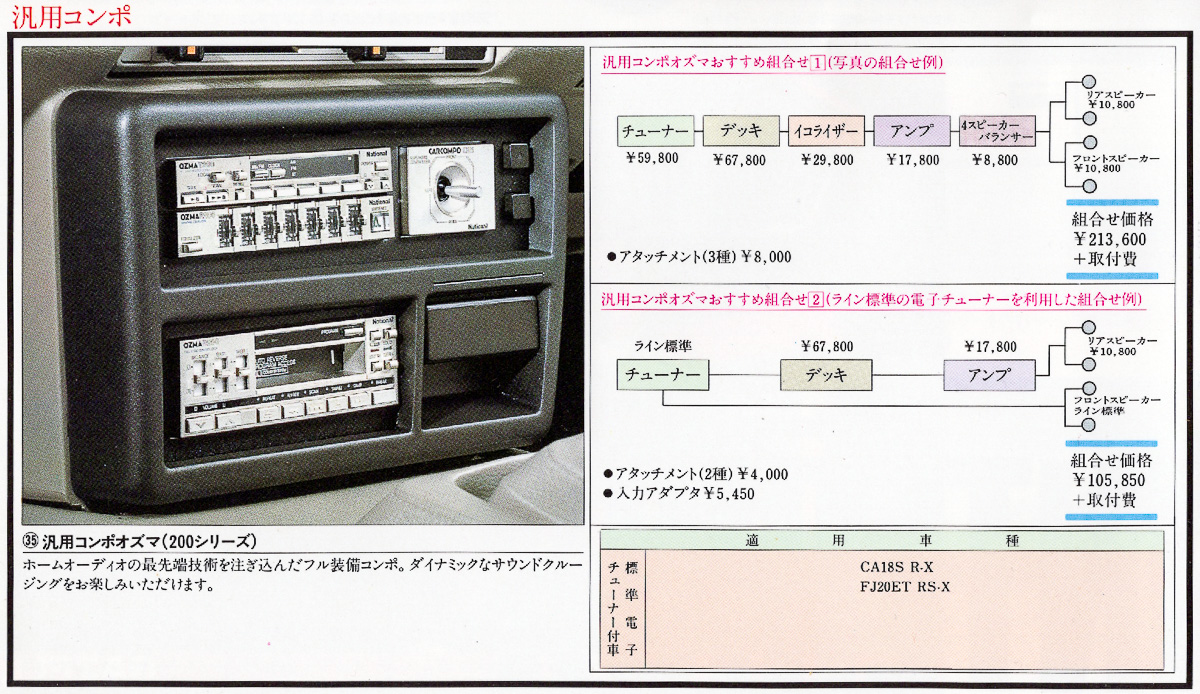

35. General-Purpose Compo Ozma (200 Series)
A fully equipped combo packed with cutting-edge home audio technology. Enjoy dynamic sound cruising.

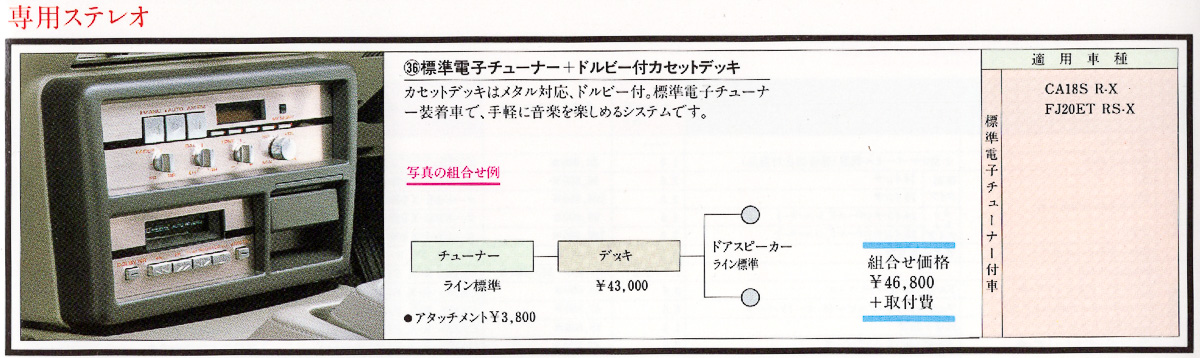

36. Standard Electronic Tuner + Cassette Deck with Dolby
The cassette deck is metal compatible and comes with Dolby. This system makes it easy to enjoy music in vehicles equipped with a standard electronic tuner.

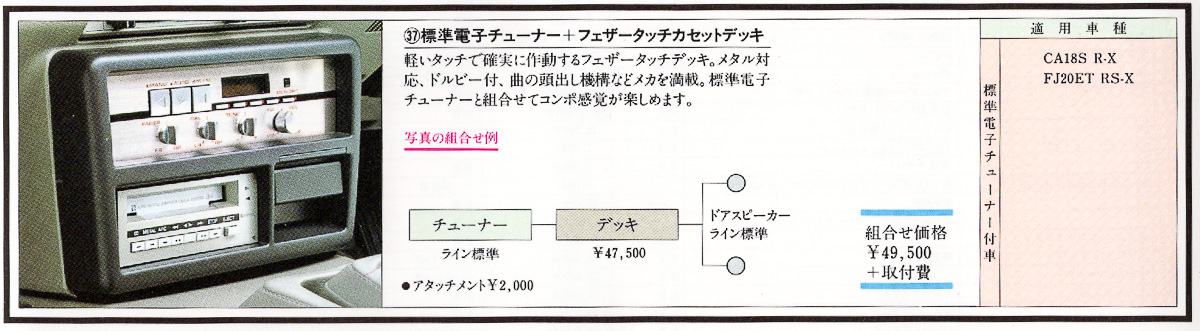

37. Standard Electronic Tuner + Feather Touch Cassette Deck
Feather-touch deck that operates reliably with a light touch. Metal compatible, Dolby, track cueing mechanism, and more. Combine with the standard electronic tuner to enjoy the feel of a component stereo.

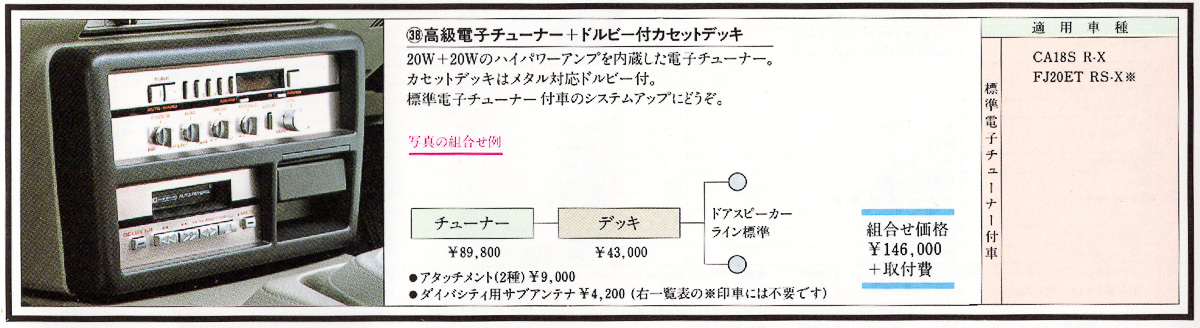

38. High-End Electronic Tuner + Cassette Deck with Dolby
An electronic tuner with a built-in 20W+20W high power amplifier. The cassette deck is equipped with Dolby metal. Perfect for upgrading the system of cars with AM radio or standard electronic tuner.

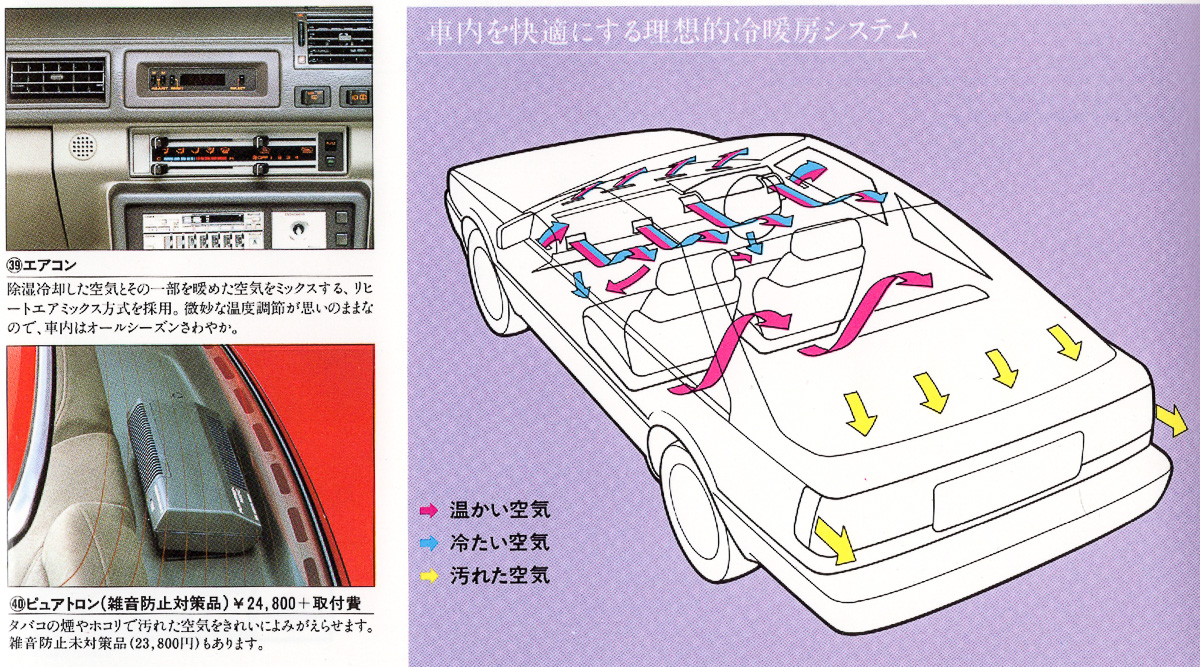

39. Air Conditioner
The reheat air mix system mixes dehumidified and cooled air with a portion of the warm air. The temperature can be adjusted precisely to your liking, so the inside of the car stays fresh all year round.
40. Puretron (Noise Prevention Product)
It will revitalise the air polluted by cigarettes smoke and dust. There is also a product without noise prevention measures.
Gazelle Optional Parts List
| # | Part Name | Specification | Installation Time (h) | Suggested Retail Price (ยฅ) | Applicable Car Model | Remarks |
|---|---|---|---|---|---|---|
| 1 | Front Protector | - | To Be Decided | All Models | Scheduled for release Fall 1984 | |
| 2 | Side Protector | - | To Be Decided | All Models | ||
| 3 | Rear Spoiler | - | To Be Decided | Hatchback | ||
| 4 | Rear Deflector | 0.4 | 28,000* | Hatchback | ||
| 5 | Rear Windscreen | Car Name Entered | 0.4 | 4,500* | Hatchback | |
| 6 | Colour Grill | Honeycomb Type (Gold/Silver) | 0.2 | 6,000* | All Models | |
| Block Type (Gold/Silver) | 0.2 | 6,000* | All Models | |||
| 7,8 | Aluminum Road Wheel Mesh Type | 14-Inch (Gold / Silver) | 2.6 | 98,000* | All Models Except Turbo RS-X | Installation time based on removing and installing all 4 tyres, fitting wheels, and adjusting wheel balance. Price for one vehicle (4 wheels) including ornaments and key nuts |
| 15-Inch (Gold / Silver) | 2.6 | 106,000* | ||||
| 9,10 | Aluminum Road Wheel | 14-Inch | 2.6 | 96,800* | ||
| 15-Inch | 2.6 | 108,800* | ||||
| 11 | Road Wheel Cover | Silvia Text Included | 0.3 | 5,600* | All Models Except Turbo R-X.G and Turbo RS-X | |
| 12 | Fog Lamp | Bosch | 0.7 | 22,500* | All Models Except Turbo RS-X Coupe | Price is for one unit (2 pieces) including attachment kit and cover |
| 13 | Cibie | 0.7 | 23,300* | |||
| 14,15 | Incandescent / Halogen | 0.7 | 13,700* / 16,900* | |||
| 16 | Window Visor | Flat / Striped Embossed | 0.8 | 4,500* / 5,000* | All Models | |
| 17 | TURBO Reversed Letter Sticker | White / Grey / Black Gradient | - | 1,000 | All Turbo Models | |
| 18 | Accent Stripes | Car Name Label | 0.8 | 5,000* | All Models | 2 Types: Black and White |
| 19 | Pinstripe (With Car Name) | 1.0 | 10,000* | All Models | 2 Types: Silver/Brown and Gold/Brown | |
| 20 | DOHC Turbo RS-X Text | 1.0 | 7,000* | Turbo RS-X | 2 Types: Black/Red and White/Red | |
| 21 | Roof Rack | Sport Type | 0.8 | 17,200* | All Models | |
| 22 | Ski Rack | Rubber Band Type | 0.8 | 10,200* | All Models | |
| Rear Hatch Type | 0.8 | 16,000* | Hatchback | |||
| 23 | Door Edge Protector | 0.3 | 2,800* | All Models | ||
| 24 | Mudguard | Integrated Fender (Front & Rear) | 0.5 | 6,000* | All Models | |
| Standard Type (Front & Rear) | 0.5 | 3,500* | All Models | |||
| 25 | Pack In Cover | 17,000 | All Models | |||
| 26 | Body Cover | Nylon | 15,000* | All Models | ||
| Polyester (Silver / Green) | 10,500* | All Models | ||||
| 27 | Floor Mat | Carpet (Red) | 15,000 | All Models | For vehicles with footrests or premium seats, please cut off the interfering parts before use | |
| 28 | Carpet (Gray) | 15,000 | All Models | |||
| 29 | Rubber | 9,000 | All Models | |||
| 30,31 | Floor Carpet | Red / Gray | 18,000 | All Models | ||
| 32 | Seat Cover | Sports Type Two-Tone (Red/Black, Blue/Black) | 0.6 | 25,000* | All Models | |
| 33 | White Cotton (Dobby Weave) | 0.6 | 12,000* | All Models | ||
| 34 | Lace (Half Cover) | 0.2 | 8,000* | All Models | ||
| 35 | General Purpose Comp Ozma | 1.7-2.2 | 61,400* - 213,600* | CA18S R-X, FJ20ET RS-X | Price range depends on combination price | |
| 36 | Cassette Deck with Dolby | Auto Reverse with Dolby | 0.6 | 43,500* | CA18S R-X, FJ20ET RS-X | Price is base price |
| 37 | Feather Touch Cassette Deck | Feather Touch, Dolby, Auto Reverse | 0.6 | 47,500* | CA18S R-X, FJ20ET RS-X | Price range depends on combination price |
| 38 | High-End Electronic Tuner | 20W+20W | 0.6-2.1 | 89,800* | CA18S R-X, FJ20ET RS-X | Price is base price |
| Cassette Deck with Dolby | Dolby with Auto Reverse | 0.6 | 43,000* | CA18S R-X, FJ20ET RS-X | Price is base price | |
| 39 | Air Conditioner | |||||
| 40 | Puretron | Small Rear Parcel Stationary (Noise Prevention Product) | 1.0 | 24,800* | Excluding Turbo R-X.G Coupe and R-X Hatchback Manual | There are also models without noise-proofing features (23,800 yen) |
* Products marked with this symbol require a seperate installation fee.
Additional Accessories
| Part Name | Price (ยฅ) |
|---|---|
| Front Window Mask | 3,000 |
| Fire Extinguisher (For Personal Cars, 1.0kg) | 7,800 |
| Fire Extinguisher Case | 700 |
| Spray Fire Extinguisher | 3,900 |
| License Plate Trim | 480-600 |
| Snowblade | 2,900-3,400 |
| Revolving Light | 4,980 |
| Electric Air Pump (5kg/cm2) | 12,800 |
| Car Refrigerator | 58,000 |
| Small Car Cleaner (Yellow Green/Red) | 3,300 |
| Car Cleaner | 6,600 |
| Extension Hose | 900 |
| Trash Box (Brown/Purple) | 1,500-1,700 |
| Snack Table (Brown/Purple) | 2,000 |
| High Heel Stand | 1,500 |
| Trunk Box | 4,200-5,500 |
| Baby Seat (Brown/Blue) | 19,500 |
| Sports Light (Michelotti) | 6,000 |
